What are the applications of reducers in HVAC systems?

2025-12-17 00:00:00

Overview of Reducers

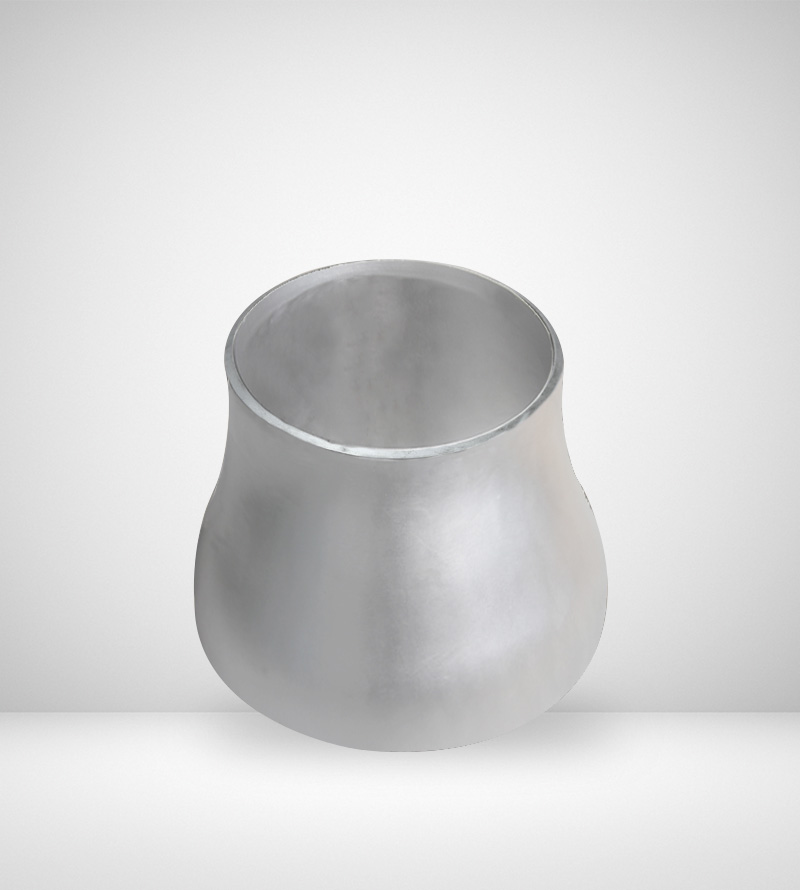

Reducers, also known as diameter reducers or reducers, are key pipe fittings in HVAC systems that connect pipes of different diameters. They achieve a smooth transition between different pipe diameters, ensuring smooth fluid flow within the system. Reducers can be broadly classified into two types based on their shape: concentric reducers and eccentric reducers. Each type has its specific application scenarios in HVAC systems.

In HVAC systems, the primary function of reducers is to regulate the fluid velocity and pressure distribution within the piping system. When the system needs to change pipe diameters to accommodate different flow demands or space constraints, reducers provide an economical and effective solution. Their design considers fluid dynamics principles, minimizing turbulence and pressure loss caused by pipe diameter changes, thereby improving overall system efficiency.

Specific Applications of Reducers in HVAC Systems

Application in Air Conditioning Water Systems

Reducers play a crucial role in the chilled water and cooling water circulation systems of central air conditioning systems. As the number of air conditioning terminal devices increases or decreases, the water flow requirements of each branch of the system vary. By using reducers, pipe diameters can be optimized to ensure that each terminal device receives the appropriate water flow.

For example, at the transition point between the main pipe and branch pipes in an air conditioning water system, it is usually necessary to reduce the diameter of the main pipe from a large diameter to a smaller diameter suitable for the branch pipe. Concentric reducers are commonly used in such applications. They maintain a consistent pipe centerline, reduce abrupt changes in water flow direction, and lower local resistance losses. Practical engineering cases show that the proper use of reducers can improve the hydraulic balance of an air conditioning water system by 15-20%, significantly improving system performance.

Applications in Ventilation Systems

In ventilation systems, reducers are mainly used to handle changes in duct size. When airflow needs to be distributed from a large duct to multiple smaller ducts, or when duct size needs to be changed due to building space limitations, reducers become indispensable connectors.

The application of reducers is particularly critical in smoke exhaust systems. Eccentric reducers are typically installed at the inlet of smoke exhaust fans to ensure that condensate does not accumulate at the bottom of the pipe. For horizontally installed smoke exhaust ducts, regulations require the use of top-flat eccentric reducers. This design effectively removes condensate and prevents water accumulation from affecting smoke exhaust performance.

Applications in Heating Systems

In district heating systems, reducers are used at the connection points between the main Pipeline and branch pipelines. As the heating radius increases, the diameter of the main pipeline gradually decreases, and reducers facilitate this transition. Within heating stations, reducers are also frequently used to connect primary and secondary networks to accommodate different pipe diameter requirements.

It is particularly noteworthy that in high-temperature hot water heating systems, the selection of reducers must consider thermal expansion. Reducers with reinforcing ribs are typically used, or appropriate compensators are installed to absorb the stress generated by thermal expansion and contraction, preventing damage to the pipeline system.

Key Points for Reducer Selection and Installation

Selection Principles

Reducer selection requires comprehensive consideration of several factors: First, the appropriate pressure rating should be selected based on the system's operating pressure; second, the fluid properties must be considered, with corrosion-resistant materials required for corrosive fluids; and third, the diameter reduction angle must be calculated, generally controlled between 15-30 degrees, as an excessively large angle will increase local resistance.

Regarding material selection, galvanized sTeel reducers are commonly used in air conditioning water systems, while stainless steel can be used in corrosive environments. Ventilation systems often use galvanized steel sheets. Special applications, such as the food and pharmaceutical industries, may require PVC or stainless steel reducers.

Installation Specifications: The installation location of reducers directly affects system performance. In water systems, reducers should be installed on straight pipe sections, at least 5 times the pipe diameter from the pump outlet and at least 2 times the pipe diameter from Elbows or valves. This avoids turbulence superposition effects and reduces vibration and noise.

The installation direction is also crucial. Pump inlets should use top-flat eccentric reducers to prevent air accumulation; outlets should use bottom-flat eccentric reducers to avoid air pockets. In ventilation systems, when reducingrs are connected to fans, a tapered inlet is preferable, and a diverging outlet is preferable. This arrangement optimizes airflow organization and improves fan efficiency by 5-8%.

Technological Development and Innovation of Reducers: With advancements in HVAC technology, the design and manufacturing processes of reducers are constantly being innovated. The application of Computational Fluid Dynamics (CFD) technology has enabled more accurate flow field analysis within reducers, optimizing their linear design and reducing energy loss.

New composite material reducers are increasingly being used in special environments. For example, fiberglass reducers offer advantages such as corrosion resistance and lightweight construction; lined reducers reduce frictional resistance and extend service life. Intelligent reducers are also emerging, with built-in sensors that monitor flow and pressure changes in real time, providing data support for system optimization.

Conclusion: As a fundamental pipe fitting in HVAC systems, the importance of reducers cannot be ignored. Proper selection and installation of reducers not only ensures normal system operation but also improves energy efficiency and reduces operating costs. With the popularization of green building concepts and increasing demands for energy conservation and emission reduction, optimized reducer design will become an important component of refined HVAC system design. In the future, reducer technology will continue to develop, providing more efficient and reliable connection solutions for HVAC systems.
