How to improve the wear resistance of concentric reducers?

2025-11-05 00:00:00

Research on Strategies to Improve the Wear Resistance of Concentric Reducers

Introduction

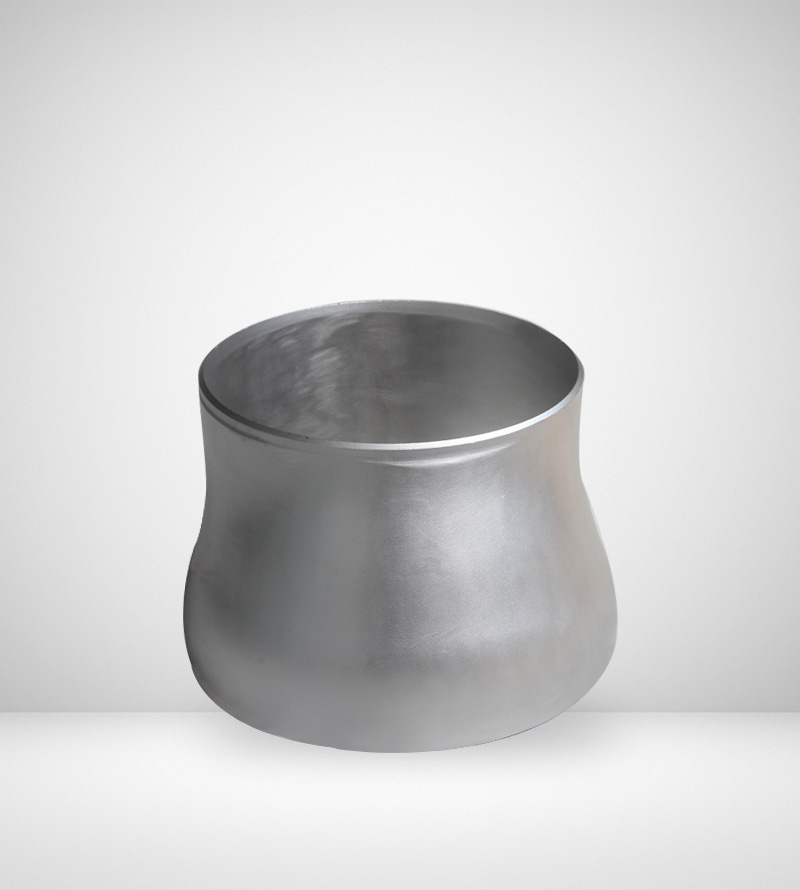

Concentric reducers, as key connecting components in Pipeline systems, are widely used in industries such as petroleum, chemical, power, and metallurgy. Their unique diameter-changing structure subjects them to complex mechanical forces and wear effects during fluid transport. With the development of industrial equipment towards higher efficiency and longer cycle times, higher requirements are placed on the wear resistance of concentric reducers. This paper will systematically explore effective ways to improve the wear resistance of concentric reducers from multiple dimensions, including material selection, structural optimization, surface treatment, and usage and maintenance.

 Material Selection and Optimization

Application of High-Hardness Materials

Increasing material hardness is a fundamental way to enhance wear resistance. Studies have shown that the wear resistance of a material is positively correlated with its hardness. For concentric reducers, high-hardness alloy materials such as high-chromium cast iron and nickel-hard cast iron can be considered. When the Cr content in high-chromium cast iron reaches 12-28%, a large amount of hard carbides can be formed, significantly improving wear resistance. Nickel-hard cast iron, through the addition of nickel, can both increase hardness and maintain a certain degree of toughness. 2. Composite Material Technology

Using composite casting or bimetallic composite technology, highly wear-resistant materials are used in easily worn areas of the reducer (such as the transition zone between diameters), while other parts use materials with better toughness. This "rigid-flexible" design ensures wear resistance while avoiding the risk of fracture due to increased overall brittleness.

Development of New Wear-Resistant Materials

In recent years, metal matrix composites (MMCs), such as tungsten carbide particle-reinforced sTeel matrix composites, have shown excellent wear resistance. Through powder metallurgy or in-situ synthesis technology, a wear-resistant layer can be formed on the surface of the reducer, achieving a hardness of HRC60 or higher, and improving wear resistance by 5-10 times compared to ordinary steel.

Structural Design and Optimization

Fluid Dynamics Optimization

By analyzing the internal flow field distribution of the reducer through CFD simulation, the diameter transition angle and transition curve are optimized to reduce turbulence and eddies. Studies show that reducers using a double-curvature transition can reduce local wear rate by more than 30% compared to single-curvature designs. The ideal diameter change angle should be controlled between 15° and 30°, and the transition zone length should be 3-5 times the diameter difference.

Wear-resistant structural design

Add wear-resistant liners or replaceable wear-resistant inner sleeves to easily worn areas. A "labyrinth" structure design can be adopted to disperse wear impact by changing the fluid direction. For high-pressure conditions, a multi-stage diameter change structure can be designed to gradually reduce flow velocity and alleviate wear.

 Wall thickness gradient design

Based on the wear distribution pattern, a non-uniform wall thickness design is adopted, increasing the wall thickness by 20%-30% in severely worn areas. Stress concentration areas are identified through finite element analysis, and structural strength is strengthened accordingly.

Surface treatment technology

Thermal spraying technology

Use high-velocity oxygen fuel spraying (HVOF) or plasma spraying technology to prepare wear-resistant coatings such as WC-Co and Cr3C2-NiCr on the inner surface of the reducing pipe. The HVOF coating has a porosity of less than 1% and a bonding strength exceeding 70 MPa, which can significantly improve wear resistance.

 Laser Surface Modification

Laser cladding technology forms a wear-resistant alloy layer on the surface, or laser quenching improves surface hardness. Laser treatment allows for precise control of the modified area, achieving a surface hardness of HRC55-62 and increasing wear resistance by 3-8 times.

 Chemical Heat Treatment

Nitriding, boronizing, and other chemical heat treatments can form a hard compound layer on the surface. Low-temperature plasma nitriding can achieve a surface hardness of HV1000 or higher, increasing wear resistance by 2-5 times with minimal impact on the substrate properties.

Composite Surface Treatment

Combining multiple surface treatment technologies, such as laser roughening to increase surface roughness, followed by thermal spraying to enhance coating adhesion, and pore sealing to improve density.

Usage and Maintenance Strategies

Selection Based on Operating Condition Adaptability

Select a suitable wear-resistant solution based on the characteristics of the conveying medium (e.g., particle concentration, hardness, shape). Installation Optimization:For high-concentration slurries, it is recommended to use integral wear-resistant materials; for media containing a small amount of hard particles, localized wear-resistant treatment can be used.

Installation Optimization:Ensure the concentricity deviation between the reducer and the straight pipe section is less than 1% to avoid localized scouring caused by flow deviation. It is recommended to install a straight pipe section 5-10 times the pipe diameter upstream to allow the fluid to fully develop before entering the reducer section.

Regular Inspection and Maintenance:Establish a wear monitoring system and regularly detect wall thickness changes in key areas using technologies such as ultrasonic thickness measurement. Set wear warning thresholds and replace or repair worn components promptly. For detachable structures, establish a regular rotation system to evenly distribute wear.

Operating Parameter Optimization:Control the medium flow rate within a reasonable range; a flow rate of 2-3 m/s is generally recommended for slurry pipelines. Avoid impact wear caused by frequent start-stop cycles. For systems with variable operating conditions, frequency converters can be used to maintain a stable flow rate.

Conclusion:*Improving the wear resistance of concentric reducers requires a systematic solution, optimizing all aspects from materials, structure, surface treatment to usage and maintenance. The future development trend is to develop intelligent wear-resistant reducers that integrate wear sensing and self-healing functions. Through multidisciplinary innovation, the service life and reliability of reducers will be continuously improved to meet the higher requirements of industrial development for pipeline systems.
